WPForms Tracking with GTM, GA4 & Google Ads

WPForm is one of the popular WordPress form plugins that come with powerful features and flexibility. Recently, I have written WPForm’s tracking code for Google Tag Manager, which gives you form submission data and input values.

Furthermore, in the following tutorial, I have shared a step-by-step, in-depth guide to properly track WPForms with Google Tag Manager for Google Analytics 4 and Google Ads Enhanced Conversions.

WPForm Tracking Code for GTM

<script>
/**
* Author: Md Hasanuzzamna
* Linkedin: https://linkedin.com/in/md-h
* Youtube: https://youtube.com/@leomeasure
* Email: info@leomeasure.com
*/
(function() {
    // Ajax Form
    var ajaxForm = document.querySelectorAll('form.wpforms-ajax-form');
    if(ajaxForm.length) {
        var origXMLHttpRequest = XMLHttpRequest;
        XMLHttpRequest = function() {
            var requestURL;
            var requestMethod;
            var requestBody;

            var xhr = new origXMLHttpRequest();
            var origOpen = xhr.open;
            var origSend = xhr.send;

            xhr.open = function(method, url) {
                requestURL = url;
                requestMethod = method;
                return origOpen.apply(this, arguments);
            };

            xhr.send = function(data) {
                if (/.+\/admin-ajax\.php/.test(requestURL)) {
                    xhr.addEventListener('load', function() {
                        if (xhr.readyState === 4) {
                            if (xhr.status === 200) {
                                var response = JSON.parse(xhr.responseText);

                                if (response.success && (data instanceof FormData)) {
                                    requestBody = {};
                                    data.forEach(function(value, key) {
                                        if(key) {
                                            key = key.replace(/\[|\]/g, '_').replace(/_+/g, '_').replace(/^_|_$/g, '');
                                            requestBody[key] = value;
                                        }
                                    });

                                    if(requestBody.action === "wpforms_submit") {
                                        window.dataLayer = window.dataLayer || [];
                                        var wpFormData = Object.assign({}, requestBody);
                                        delete wpFormData['wpforms_nonce'];
                                        dataLayer.push({
                                            event: 'wpform_submit',
                                            formId: wpFormData['wpforms_id'],
                                            inputs: wpFormData
                                        });
                                    }
                                }
                            }
                        }
                    });
                }

                return origSend.apply(this, arguments);
            };

            return xhr;
        };
    }

    // Non Ajax Form
    var forms = document.querySelectorAll('form[id^="wpforms-form-"]:not(.wpforms-ajax-form)');
    forms.forEach(function(form) {
        var formId = form.getAttribute('data-formid');

        form.addEventListener('submit', function(event) {

            event.preventDefault();

            var form = this;
            var formData = new FormData(this);
            var wpFormData = {};

            var errorRequired = false;

             formData.forEach(function (value, key) {
                if(key) {
                    var inputField = form.querySelector('[name="'+key+'"]');

                    if(inputField) {
                        var fieldType = inputField.getAttribute('type');

                        var isRequiredField = inputField.classList.contains('wpforms-field-required');

                        if(isRequiredField) {
                            if(inputField.tagName === 'SELECT') {
                                var selectedOptionVal = inputField.options[inputField.selectedIndex].text;
                                if(!selectedOptionVal) {
                                    errorRequired = true;
                                }
                            } else if((inputField.getAttribute('type') === 'email') && (!value || !value.includes('@'))) {
                                 errorRequired = true;
                            }
                            else if(!value) {
                                errorRequired = true;
                            }
                        }
                    }

                    var formattedKey = key.replace(/\[|\]/g, '_').replace(/_+/g, '_').replace(/^_|_$/g, '');
                    wpFormData[formattedKey] = value;
                }
             });

             // required checkbox and radio button check
             var requiredFieldSets = form.querySelectorAll('ul.wpforms-field-required');
             requiredFieldSets.forEach(function(fieldSet){
                if(fieldSet.querySelector('input[type="radio"]') || fieldSet.querySelector('input[type="checkbox"]')) {
                   if(!fieldSet.querySelector('input:checked')) {
                     errorRequired = true;
                   }
                }
             });

            if(!errorRequired) {
                window.dataLayer = window.dataLayer || [];
                delete wpFormData['wpforms_nonce'];
                dataLayer.push({event: 'wpform_submit', formId: formId, inputs: wpFormData});
            }

        });
    });
})();
</script>

How to check it is wpforms or not?

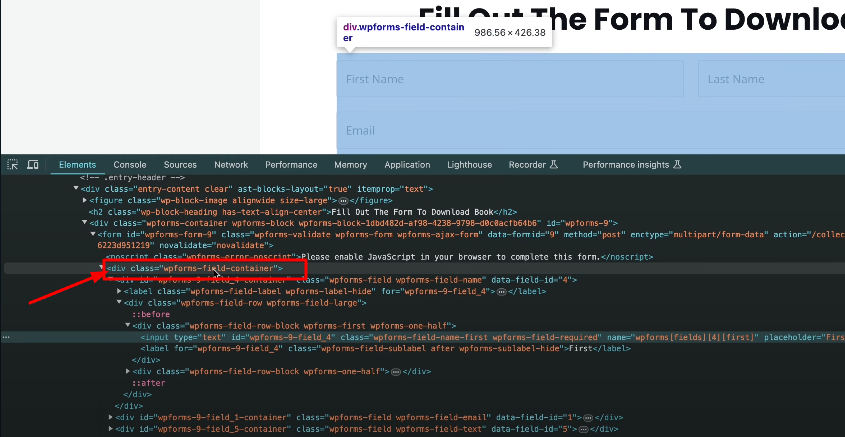

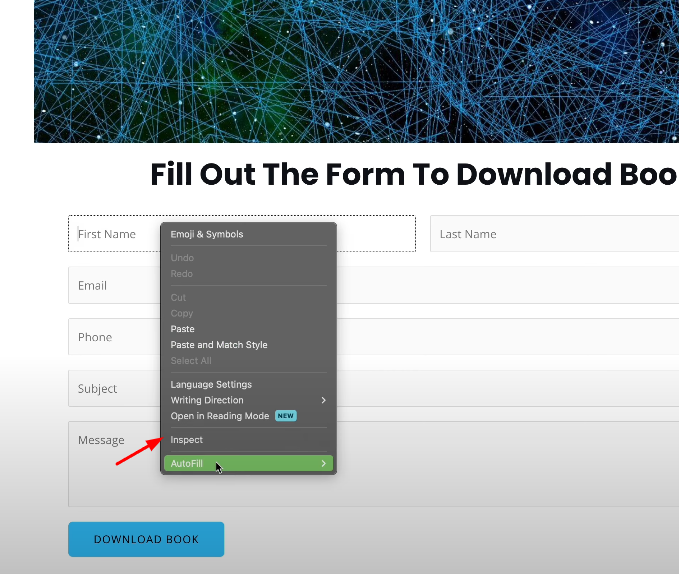

open the form page and inspect

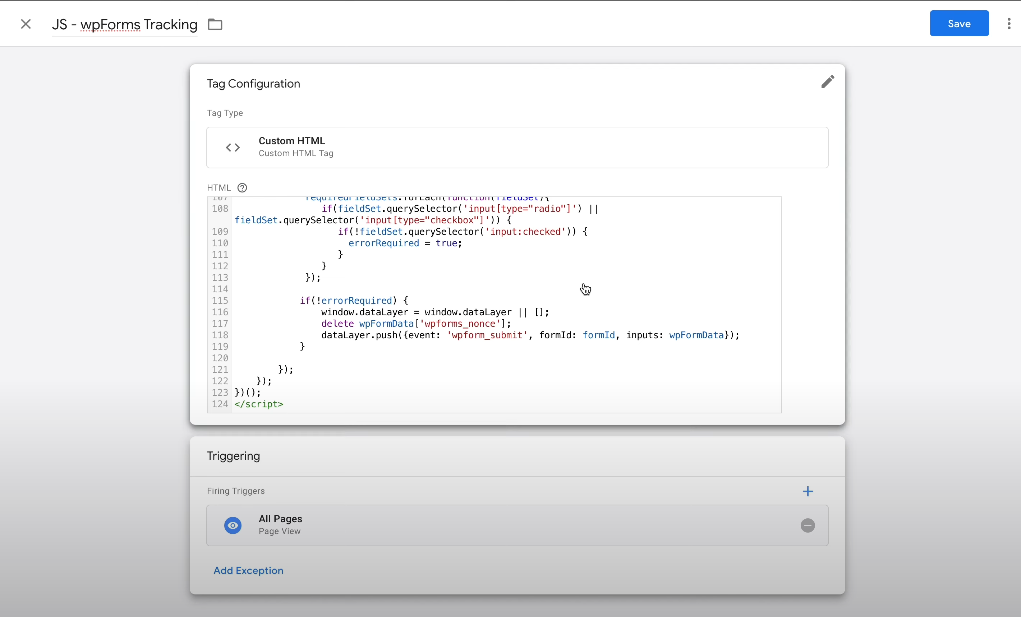

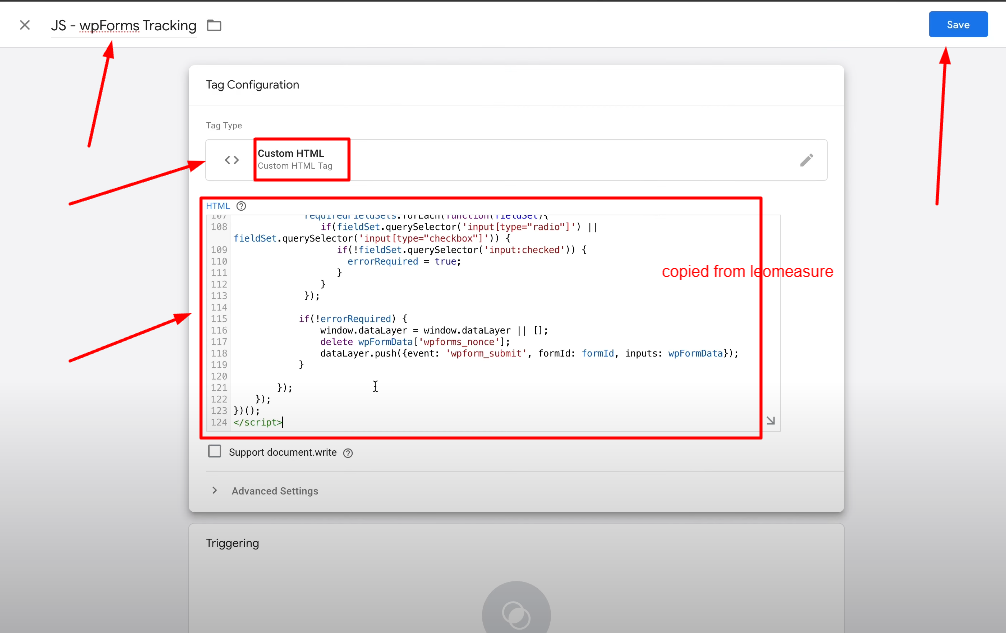

FIrst, create a new tag

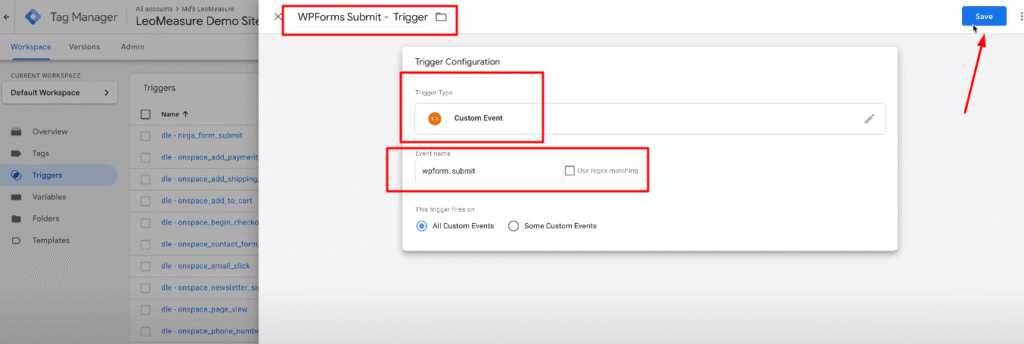

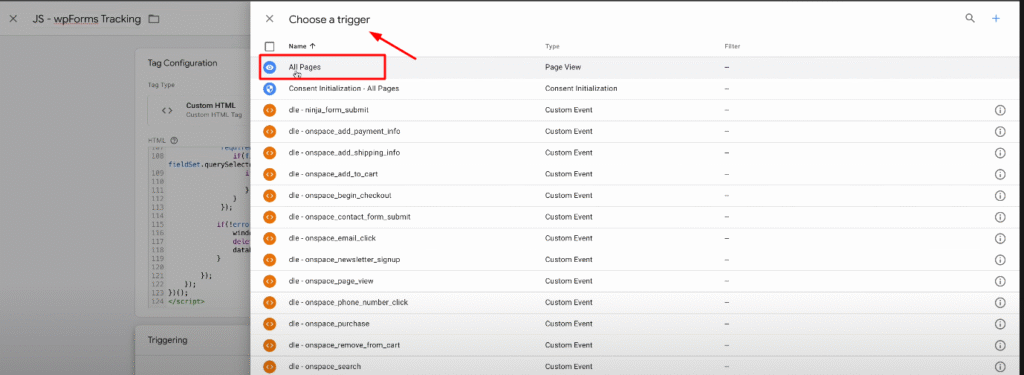

For triggering

ANd save it

send information to GA4

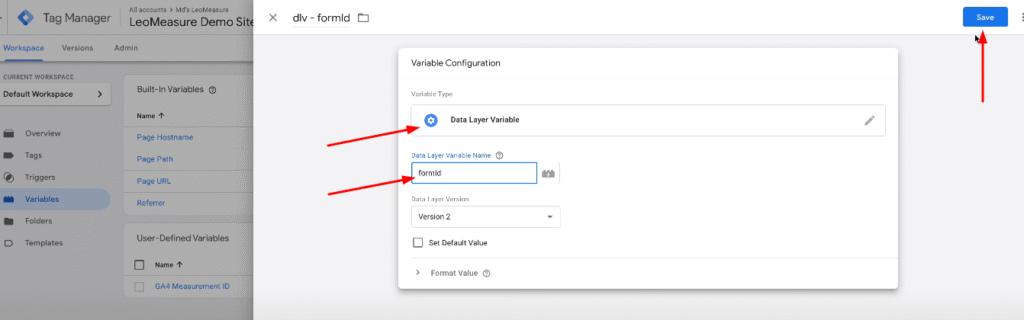

Create a new variable first

FOr triggering

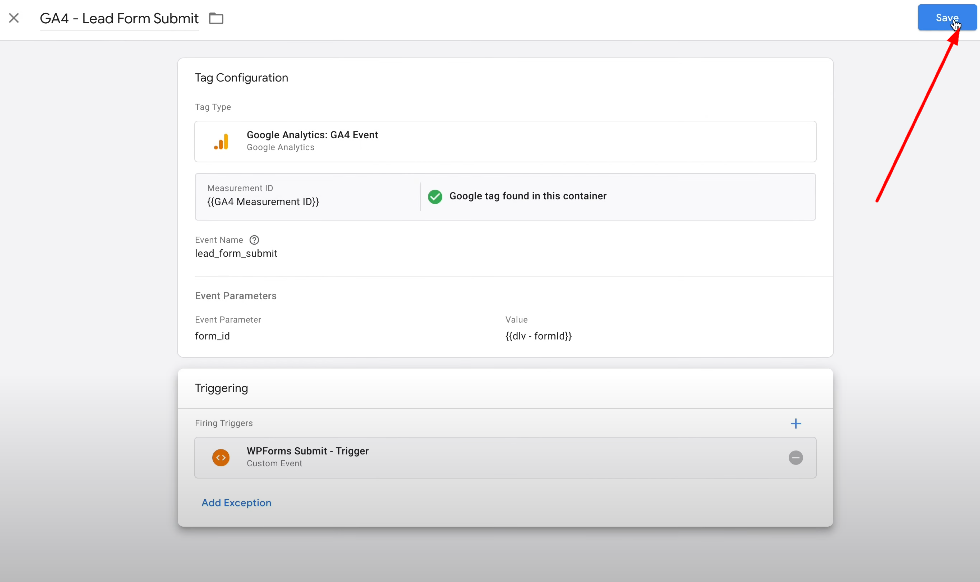

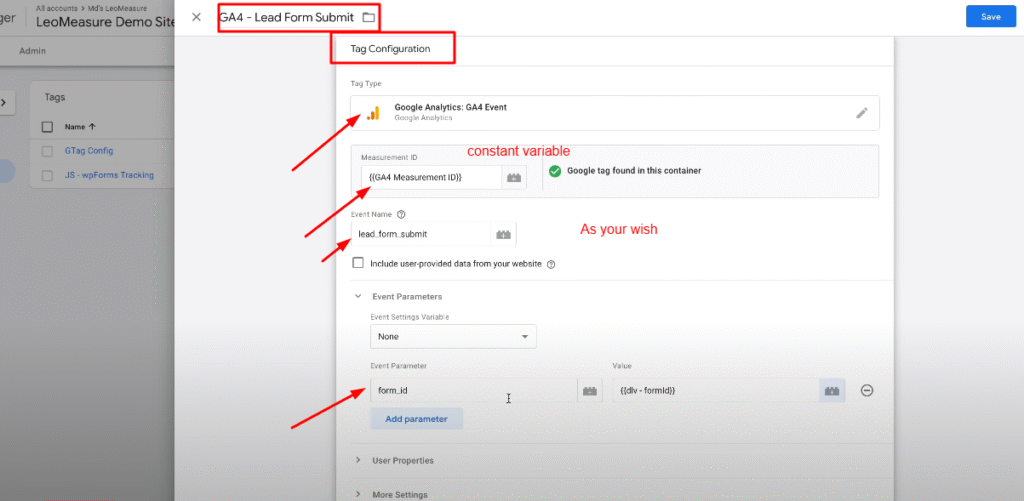

Now, Create a new tag

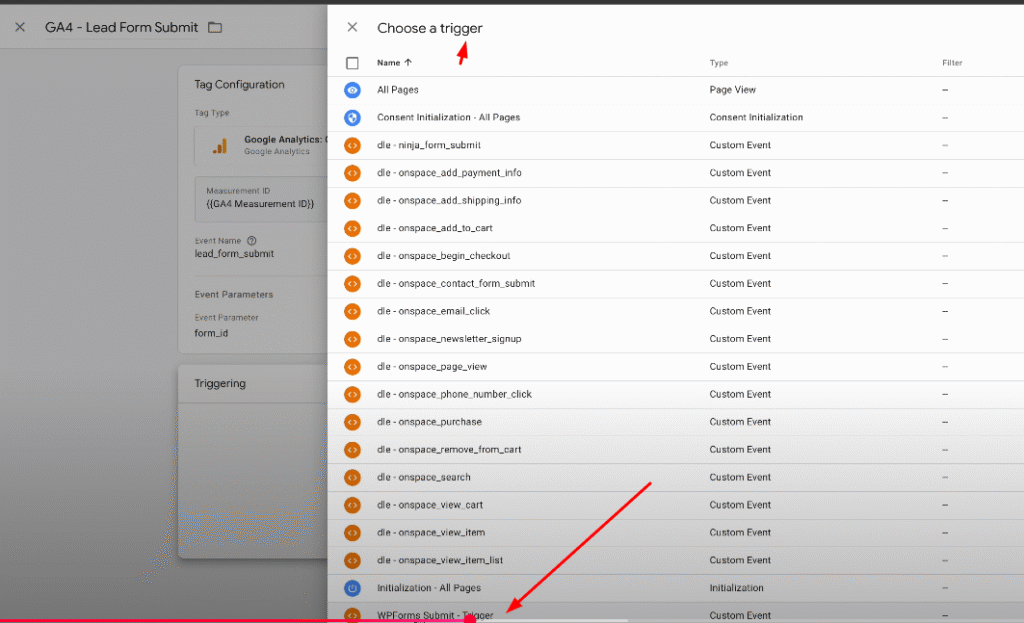

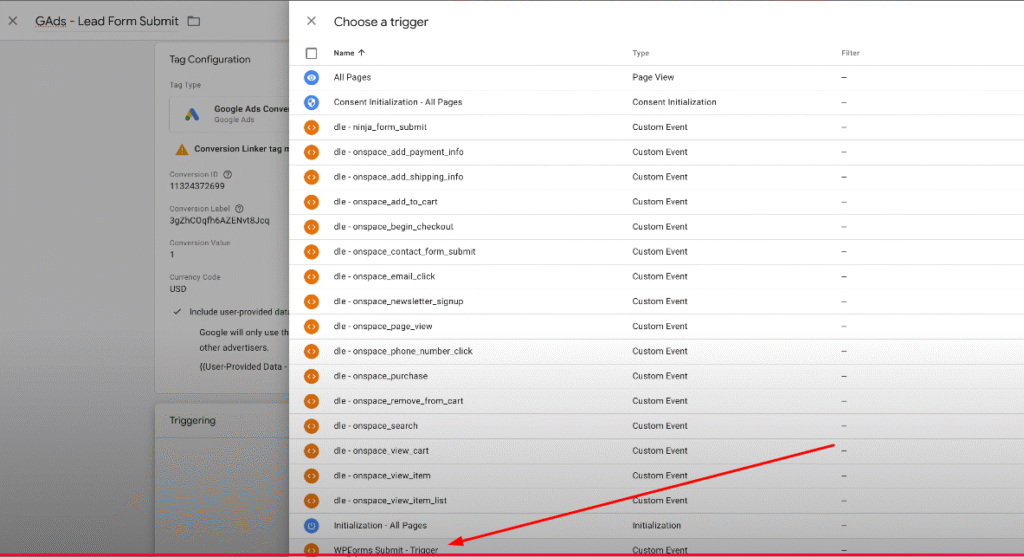

Trigger

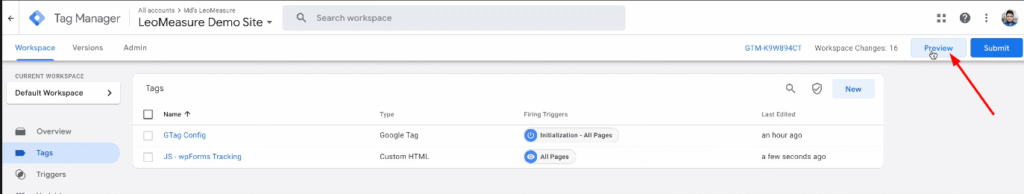

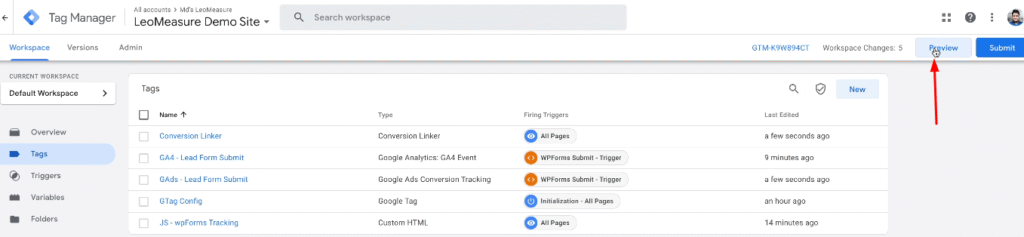

Preview it again

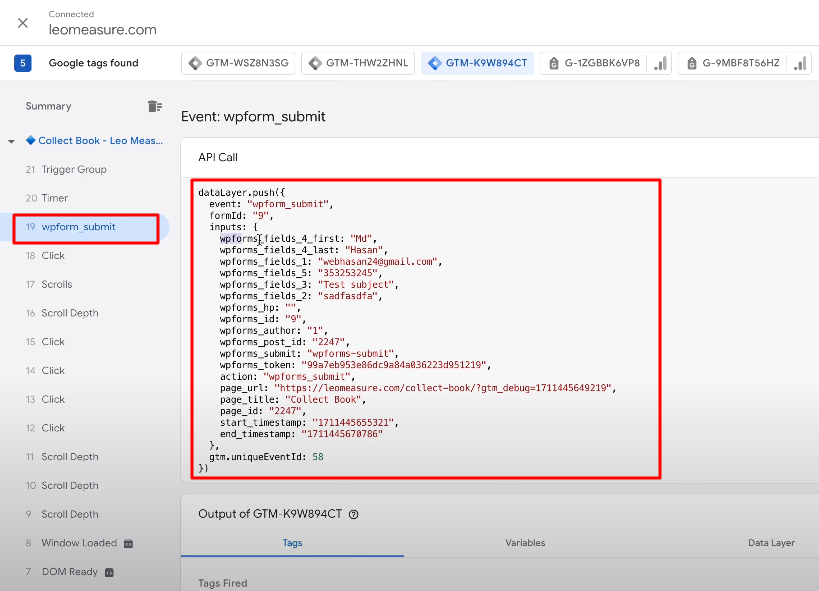

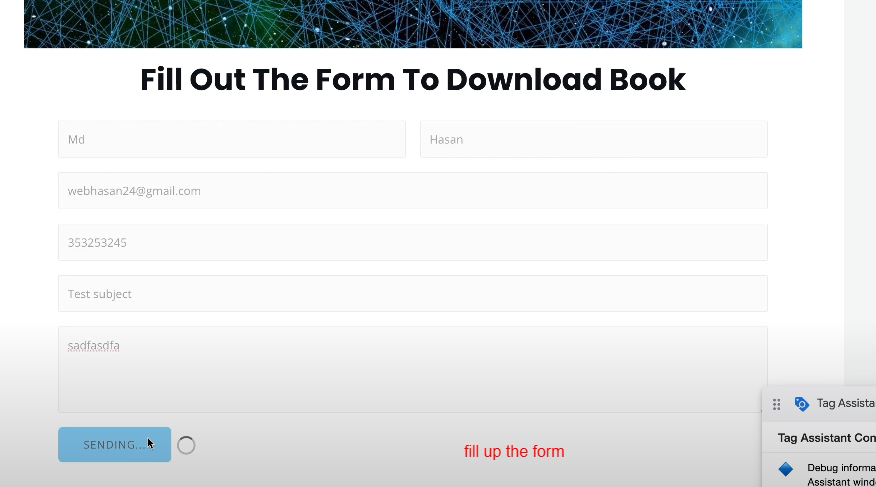

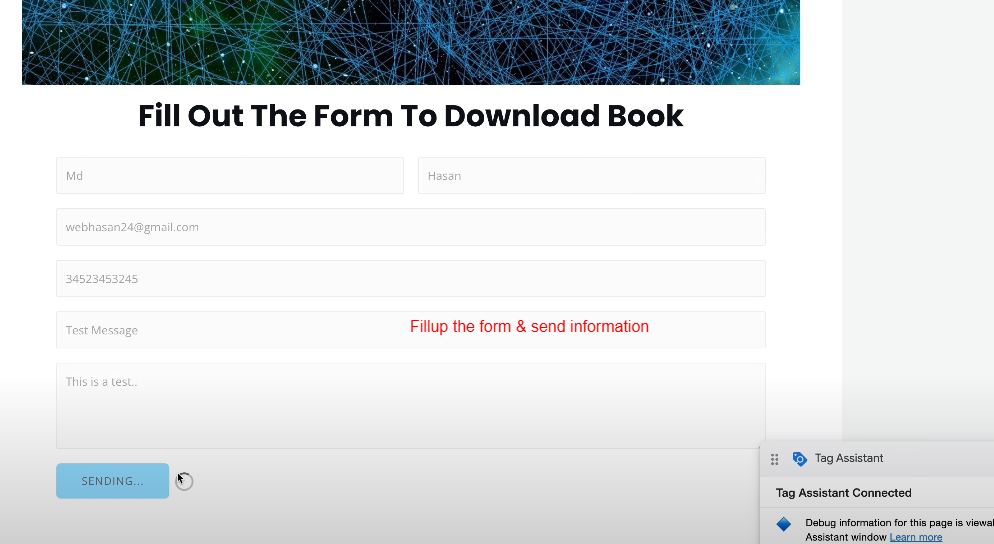

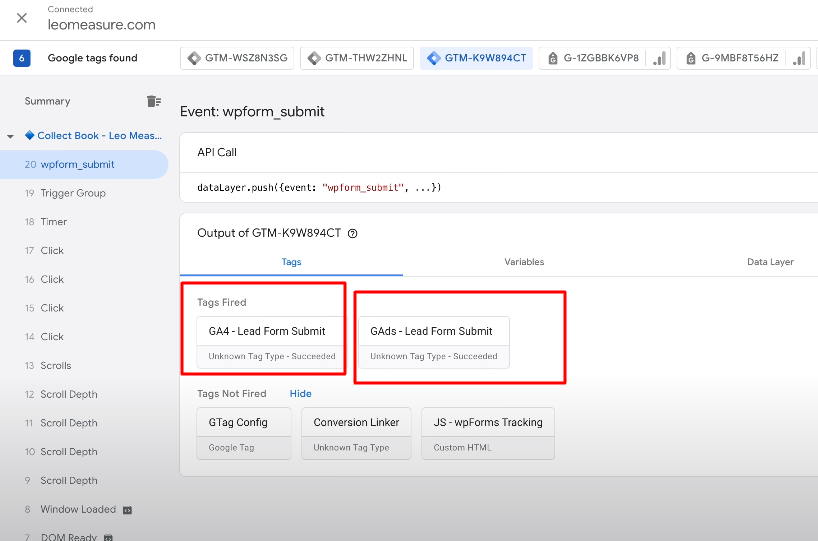

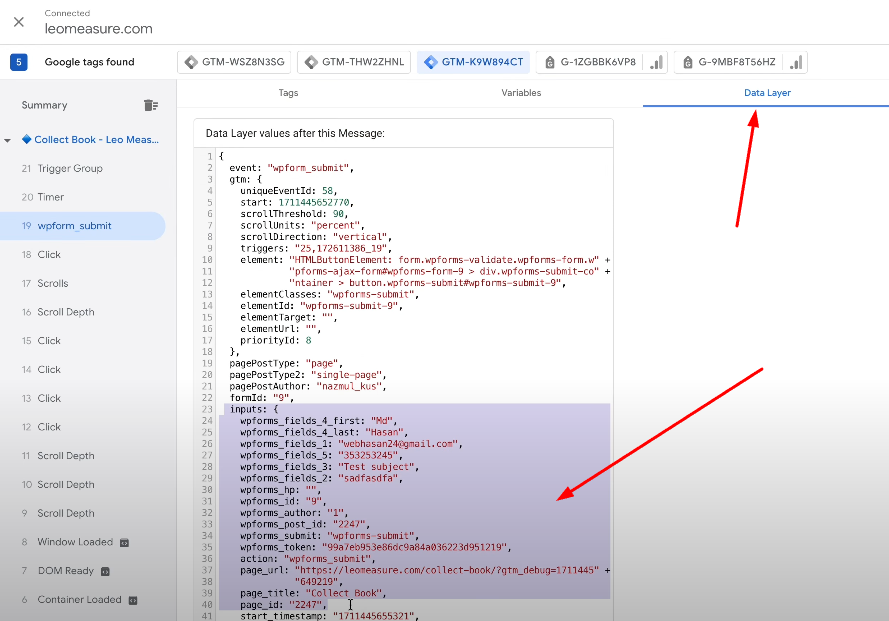

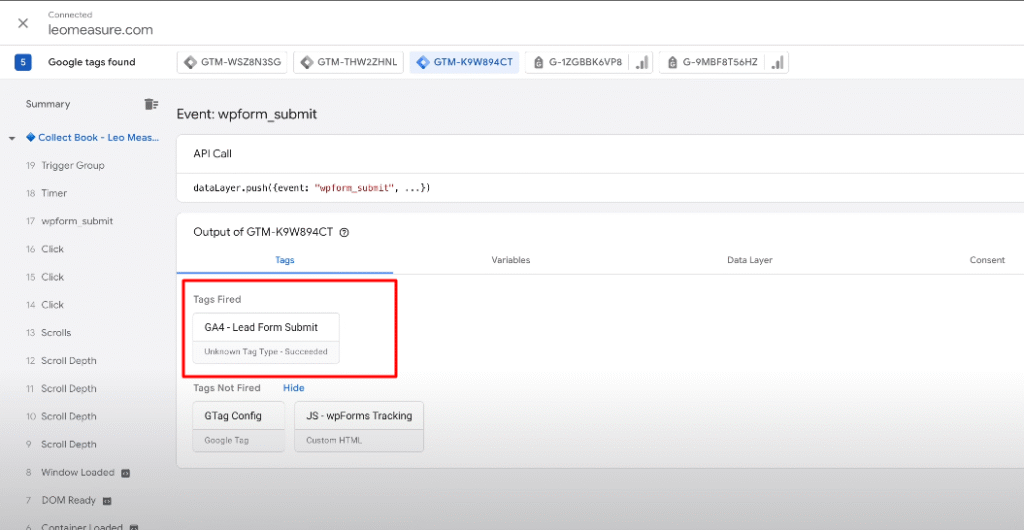

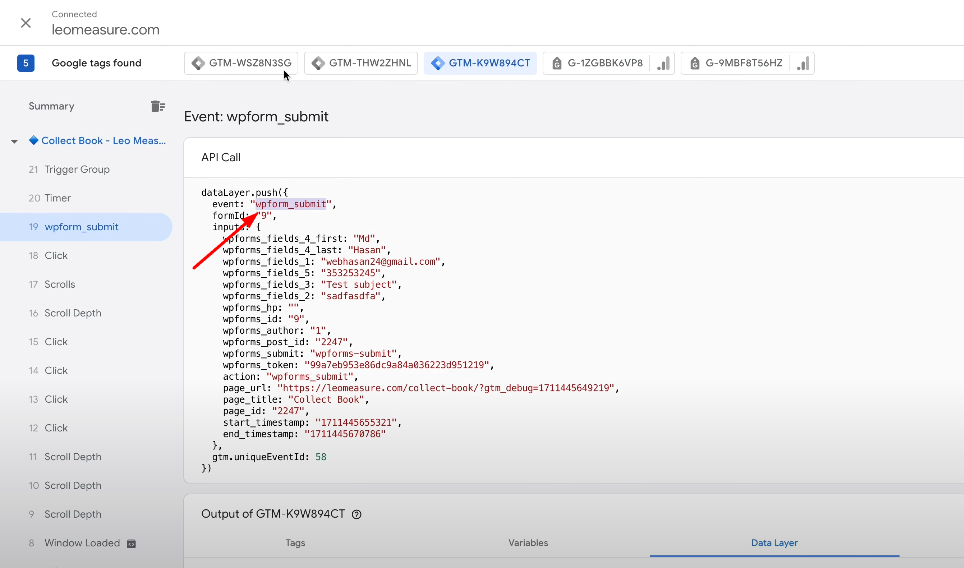

After submitting the form again, let’s preview and see what’s happening in GTM

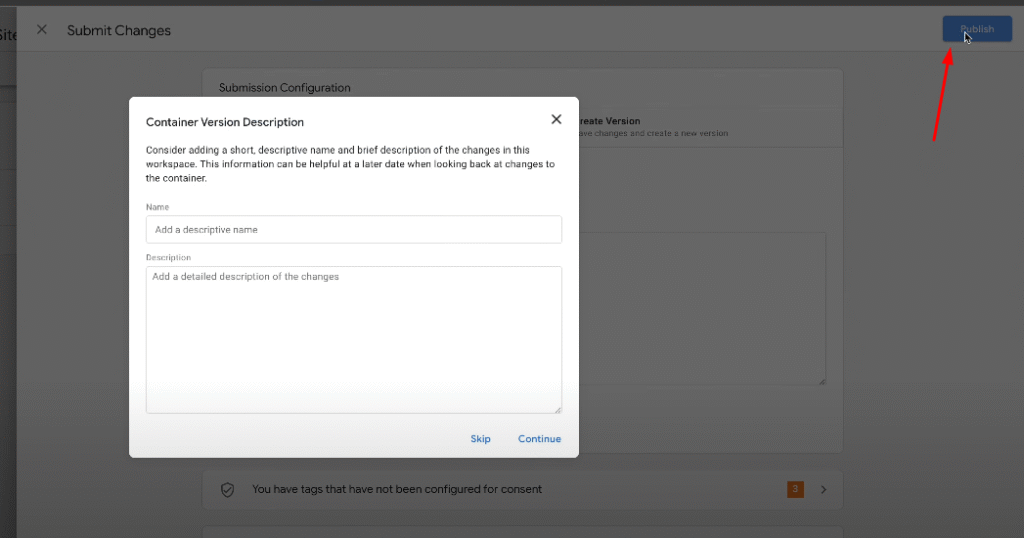

So, everything is okay.Now submit it and publish.

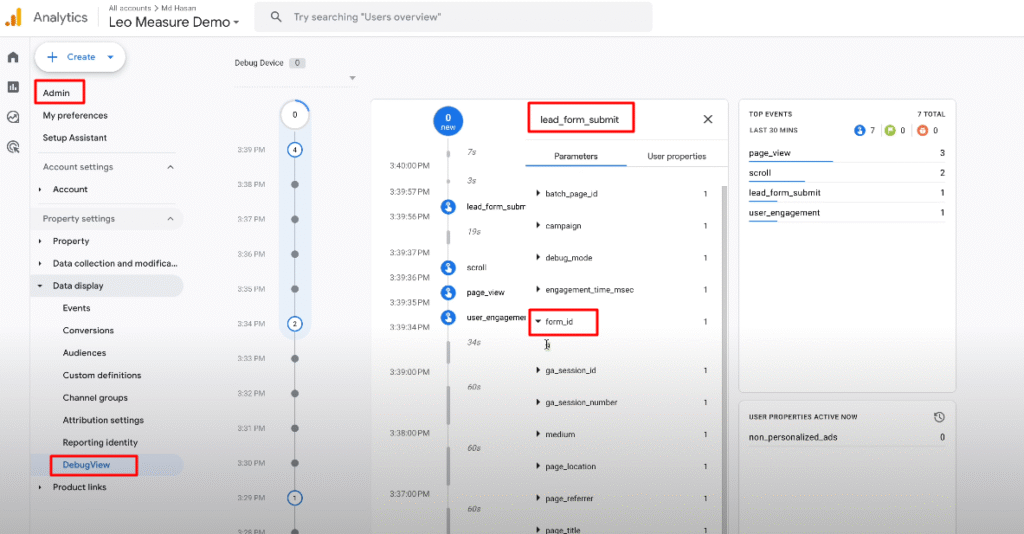

This is the process to send information to google analytics

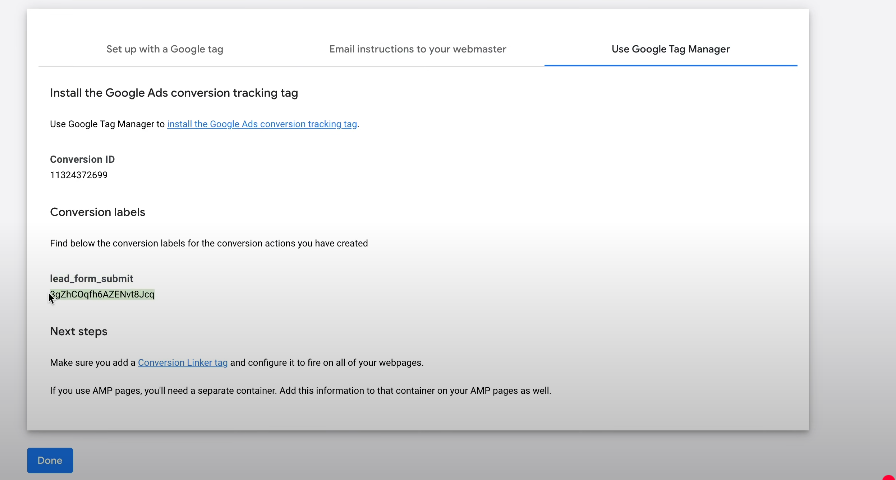

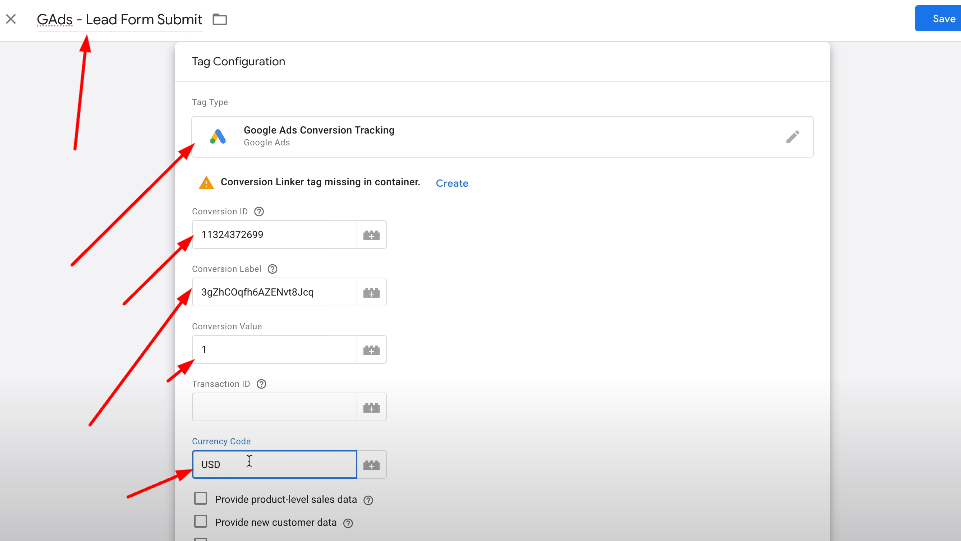

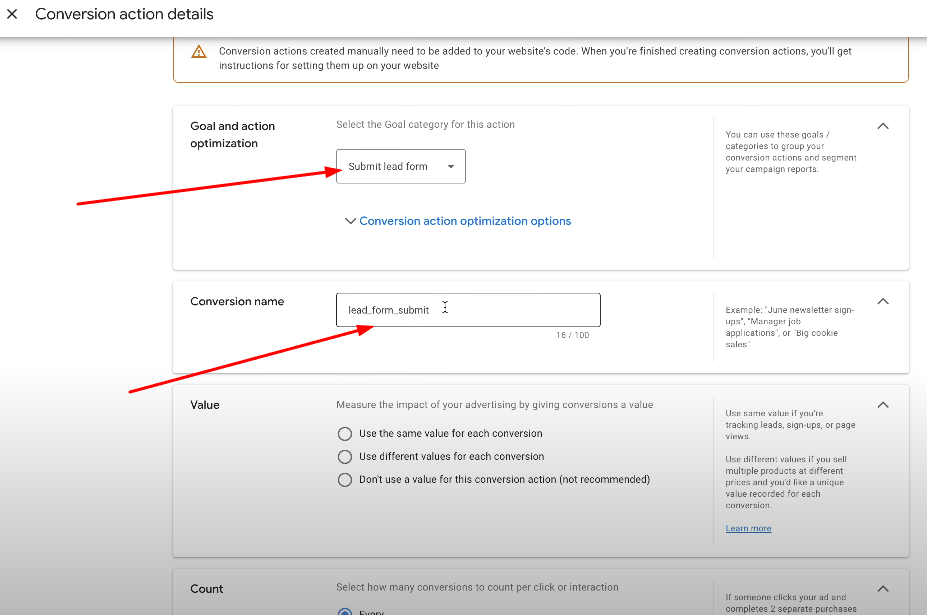

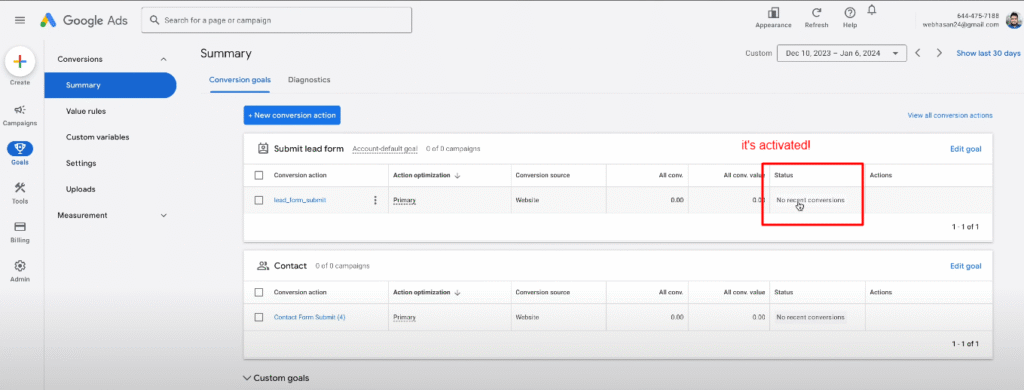

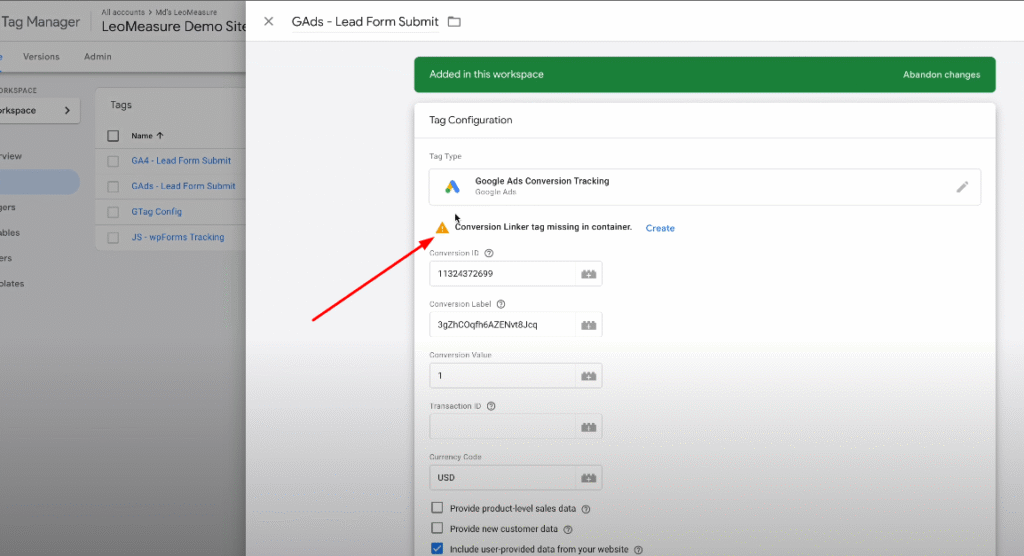

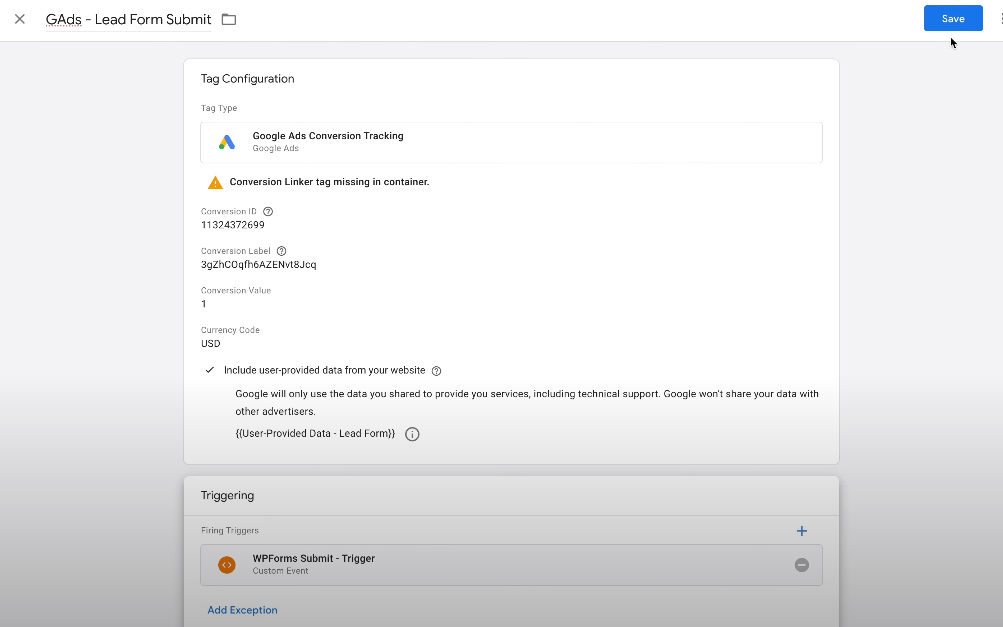

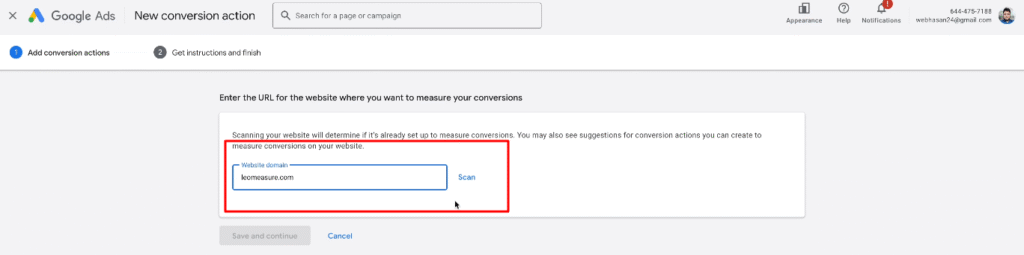

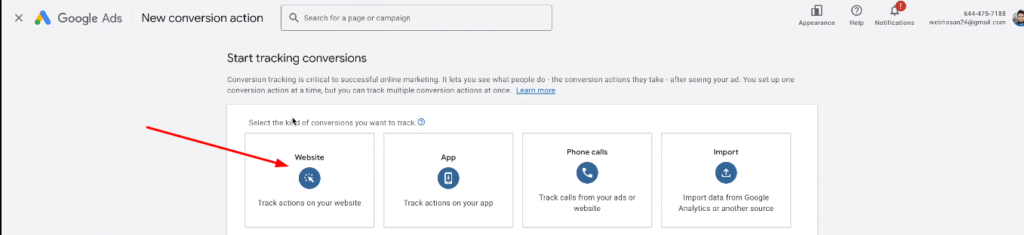

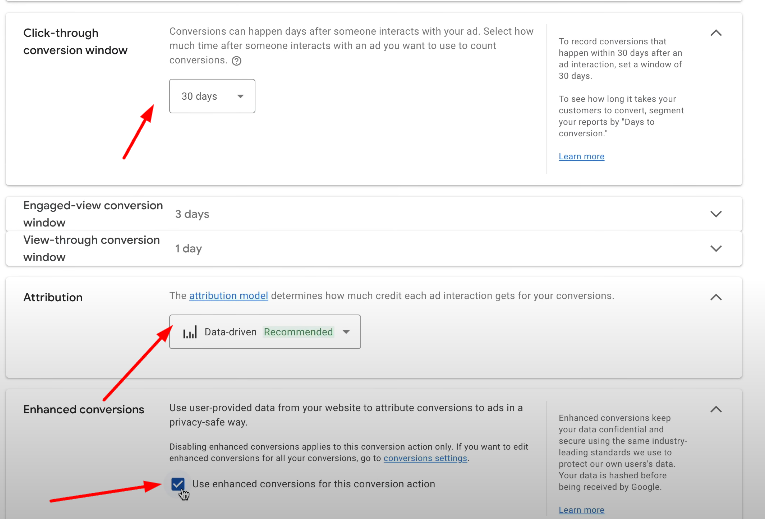

Conversion tracking for Google ad conversion

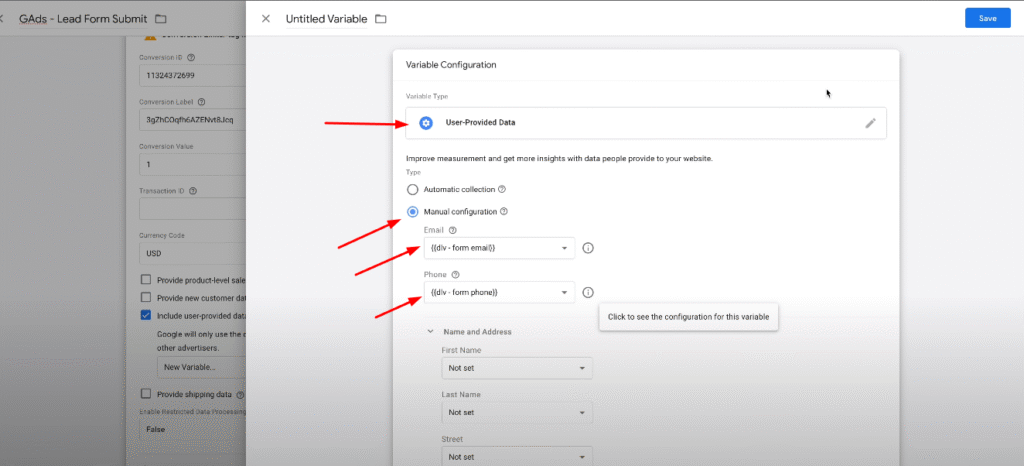

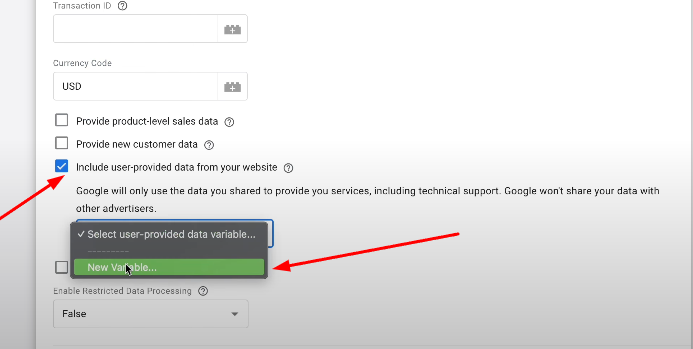

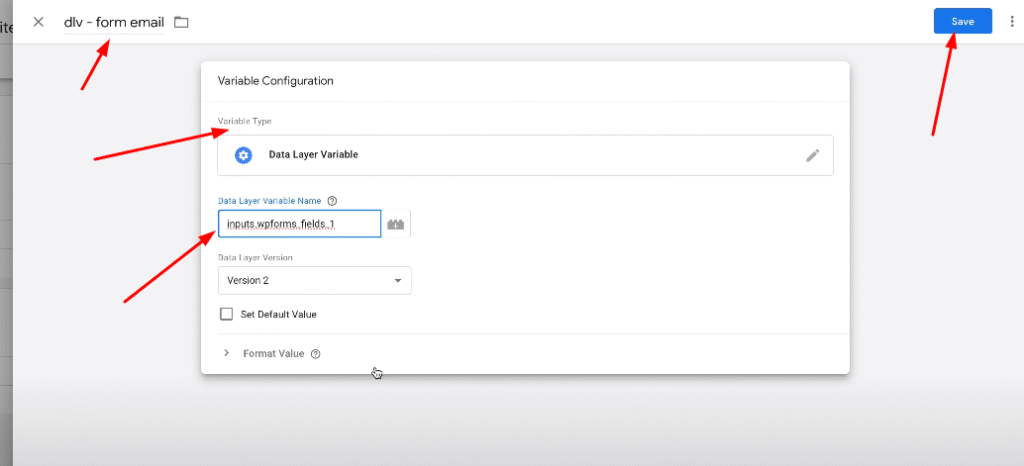

create a new variable first

we will use this variable for email tracking purpose

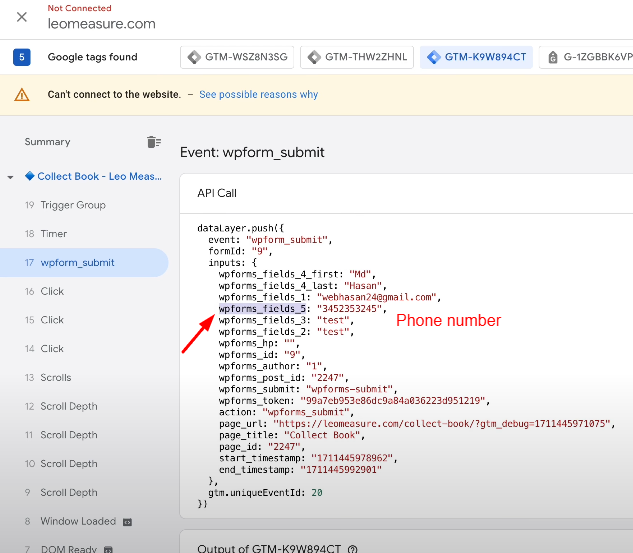

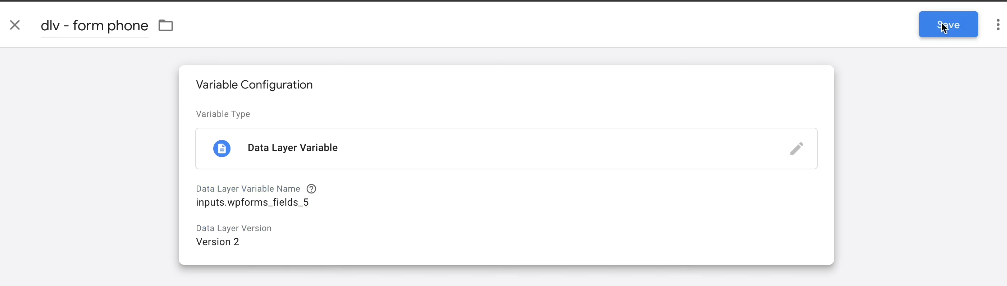

variable for phone number

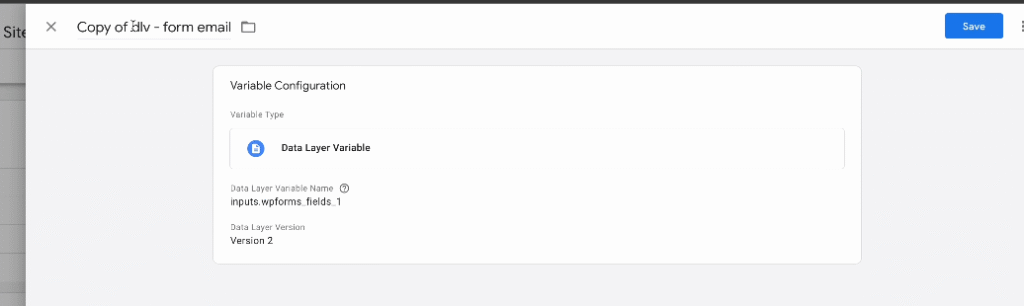

Now, we will create another variable for phone number. So, without starting from scratch, we will copy this email variable first for speed up the process
